Project of a colorful residential building with a built-in garage
136 m² total area
/ 1464 ft²
1 floor
3 bedrooms
2 bathrooms
Click to view
‹
›
Description
Project of a colorful residential building with a built-in garage Number of floors: 1 Total area: 136.45 m2 Living Area: 61.35 m2 House height: 7.20 m Ceiling Height: 2.80 m Roof Angle: 30 ° Cubic capacity: 860.25 m3 Number of bedrooms: 3 Number of bathrooms: 2 Garage: Garage for one car Minimum plot size (length): 23.50 m Minimum plot size (width): 21.50 m Materials: Walls: aerated concrete, ceramic blocks Ceiling: on wooden beams Roofing: metal tile, ceramic tile, bitumen Foundation: monolithic tape
Interested in this plan?
Contact us to get full blueprints, construction estimate, or adapt this plan to your plot and needs.

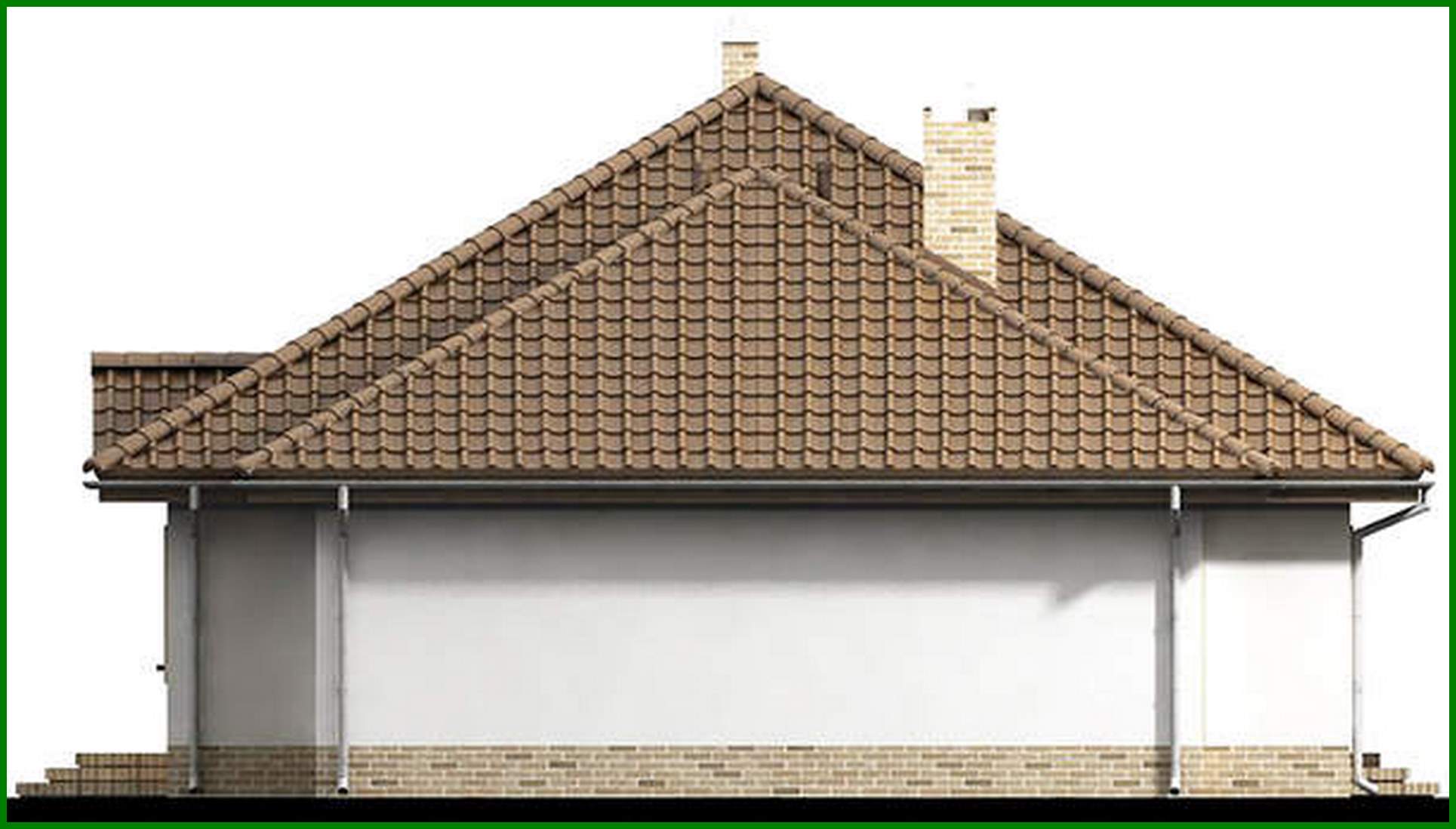

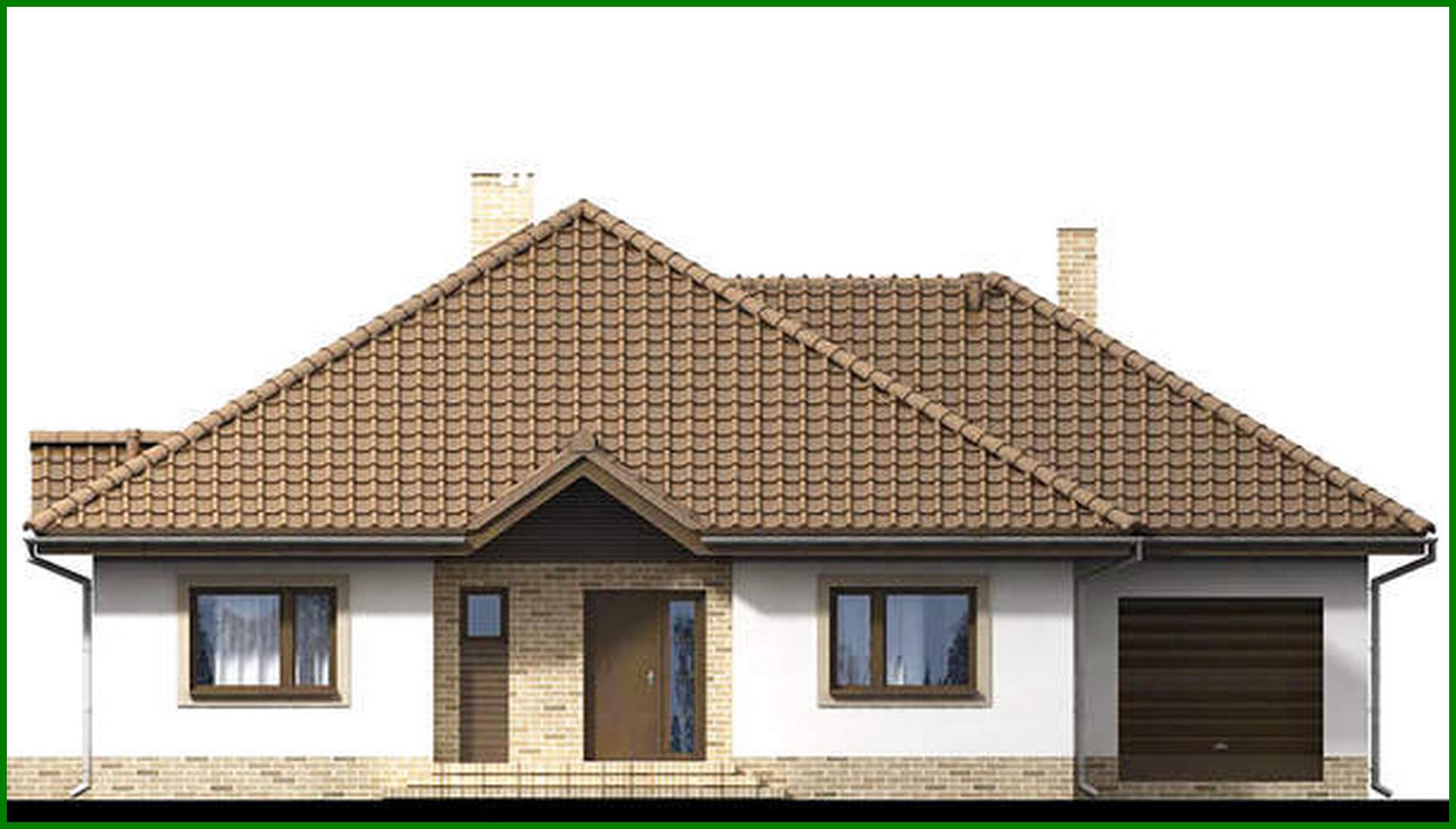

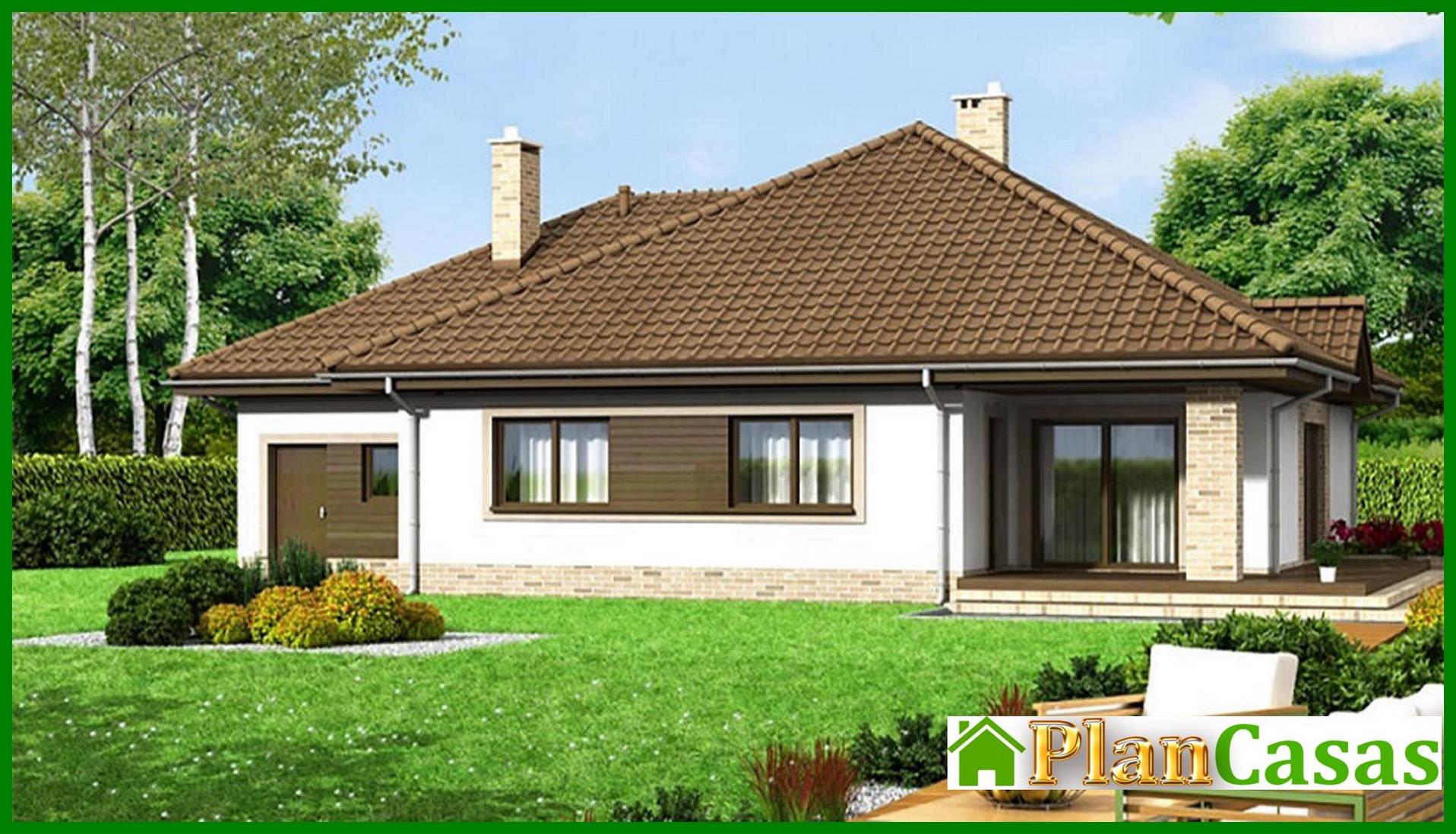

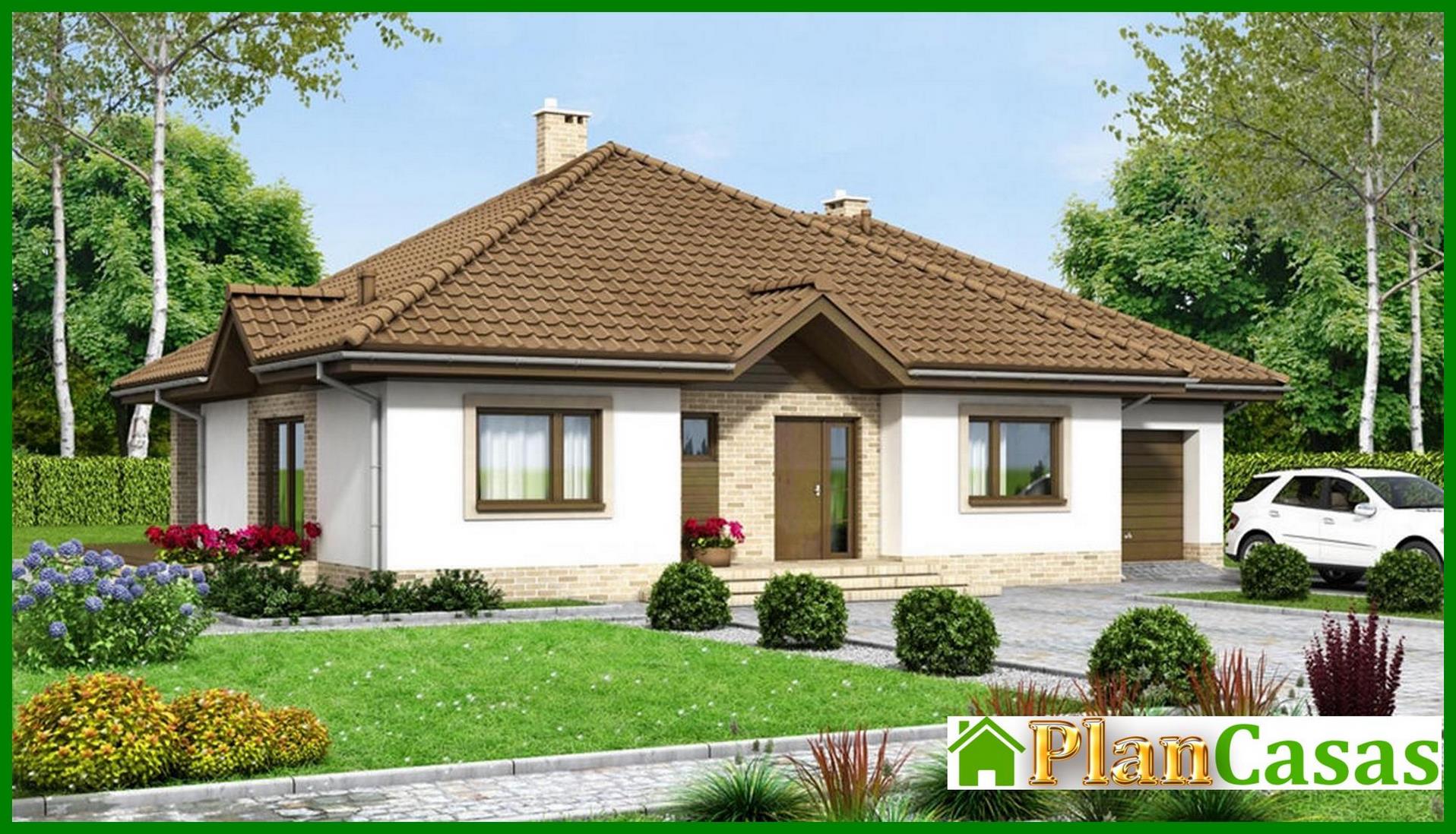

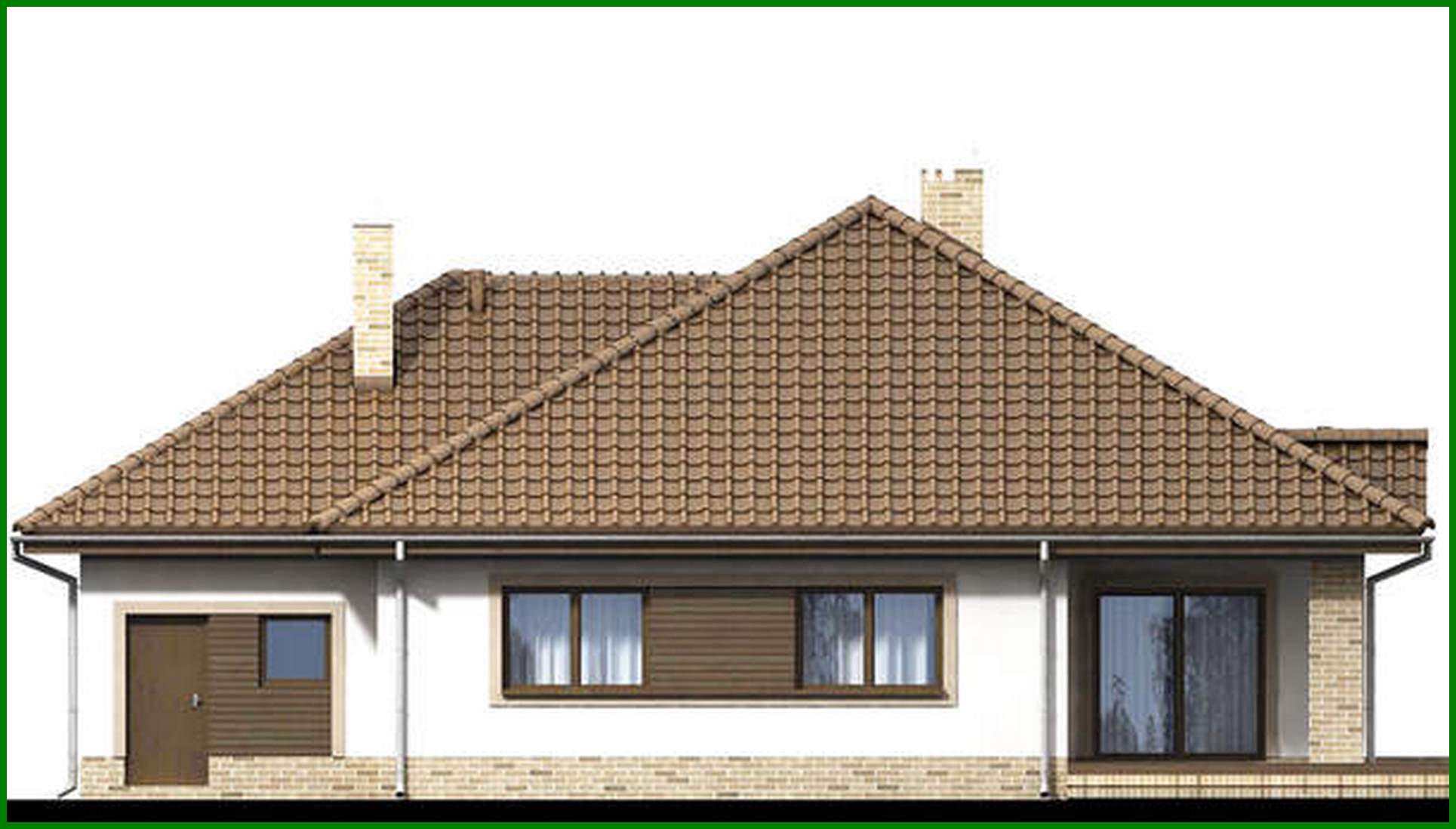

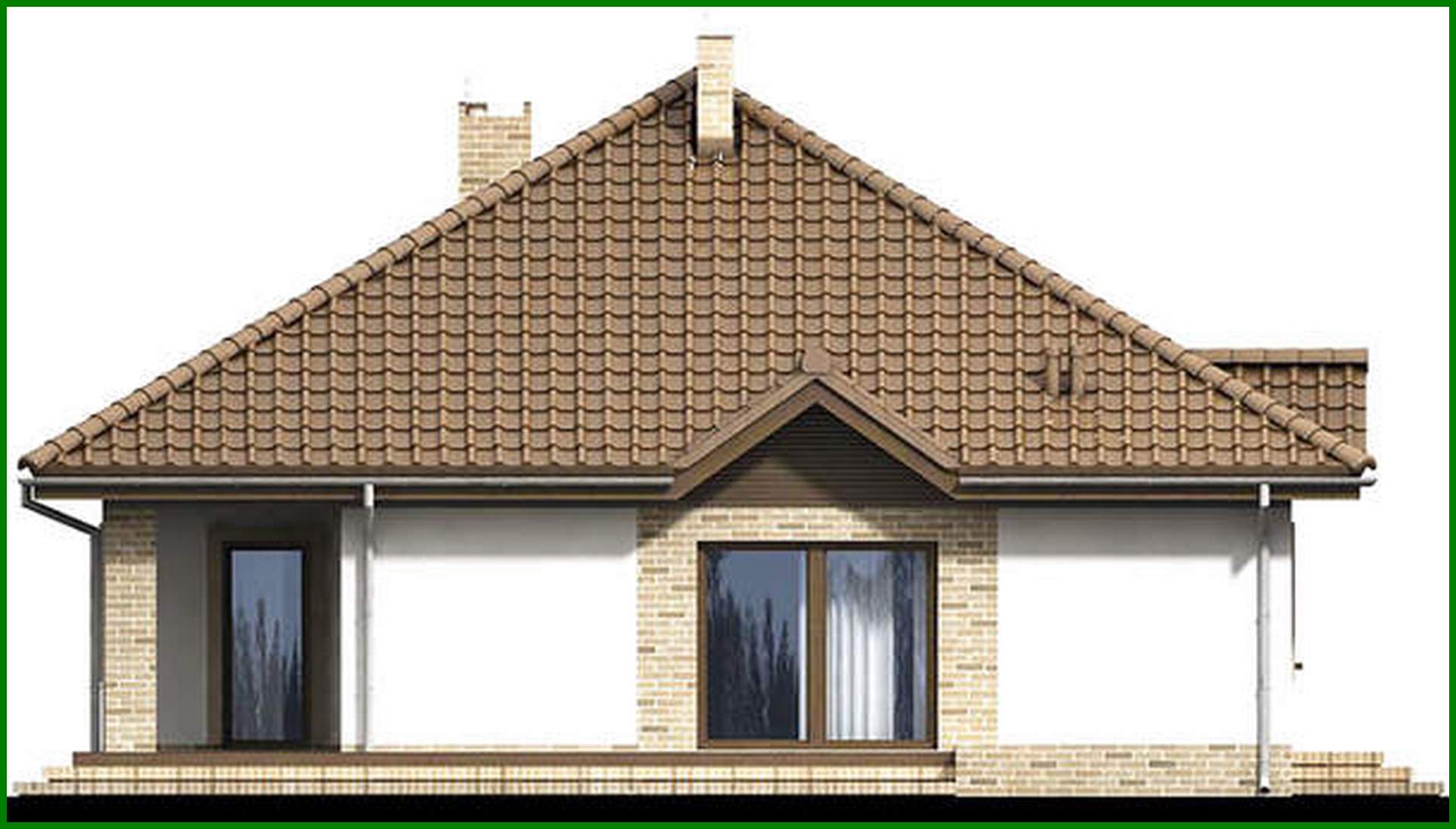

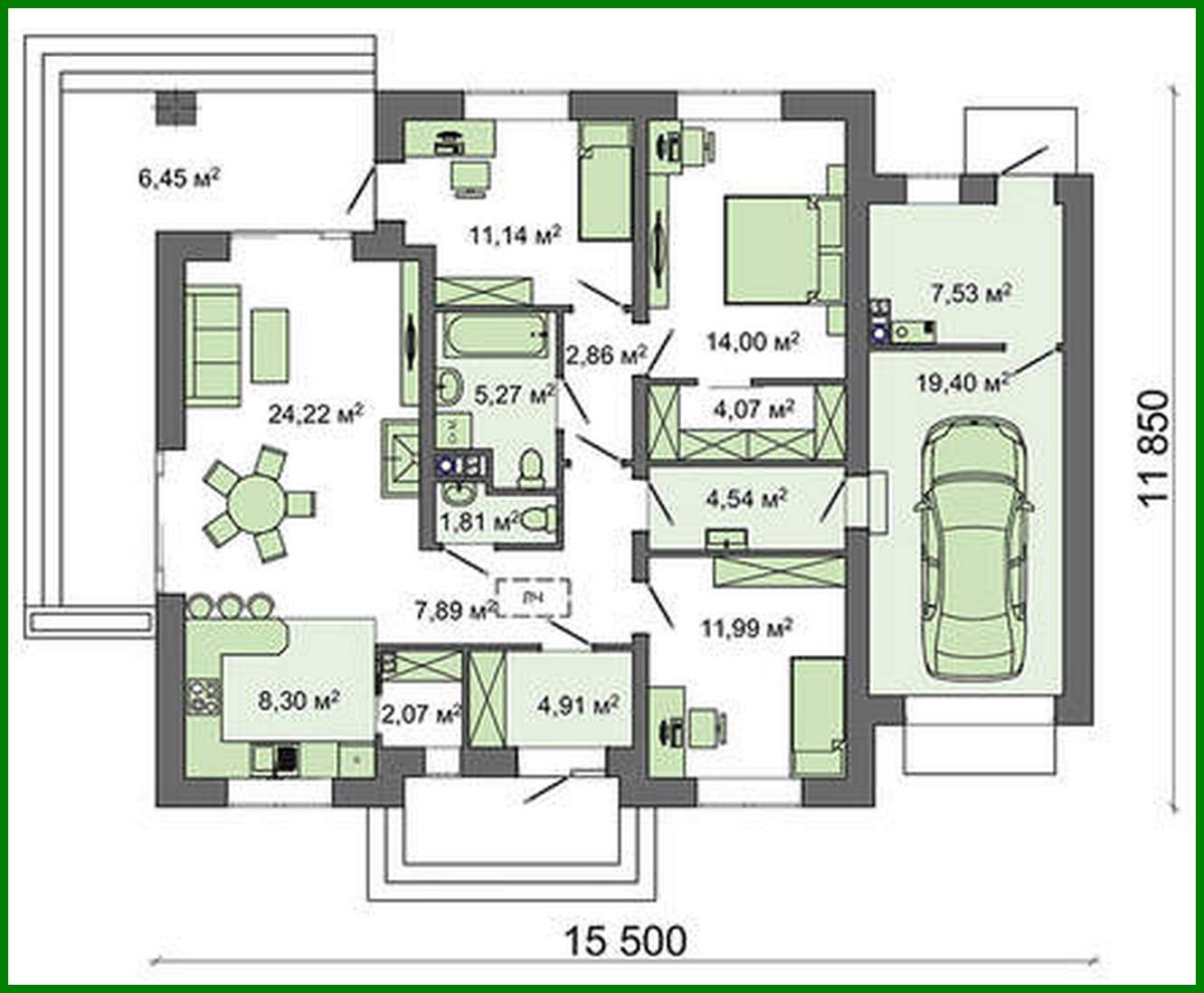

Request more informationVisualization gallery
