Attic cottage with dimensions 8 to 8

96 m² total area / 1033 ft² 2 floors 4 bedrooms 2 bathrooms
Attic cottage with dimensions 8 to 8
Click to view

Description

Attic cottage with dimensions 8 to 8 Number of floors: 2 Total area: 96.00 m2 Living Area: 74.20 m2 House height: 7.70 m Ceiling Height: 2.80 m Roof Angle: 40 ° Roof area: 113.00 m2 Cubic capacity: 225.00 m3 Number of bedrooms: 4 Number of bathrooms: 2 Minimum plot size (length): 15.40 m Minimum plot size (width): 16.90 m Built-up area: 64 m2 Materials: Walls: aerated concrete, ceramic blocks Overlap: monolithic overlap Roofing: ceramic tile, metal tile, cement-sand tile Foundation: monolithic tape

Interested in this plan?

Contact us to get full blueprints, construction estimate, or adapt this plan to your plot and needs.

Request more information

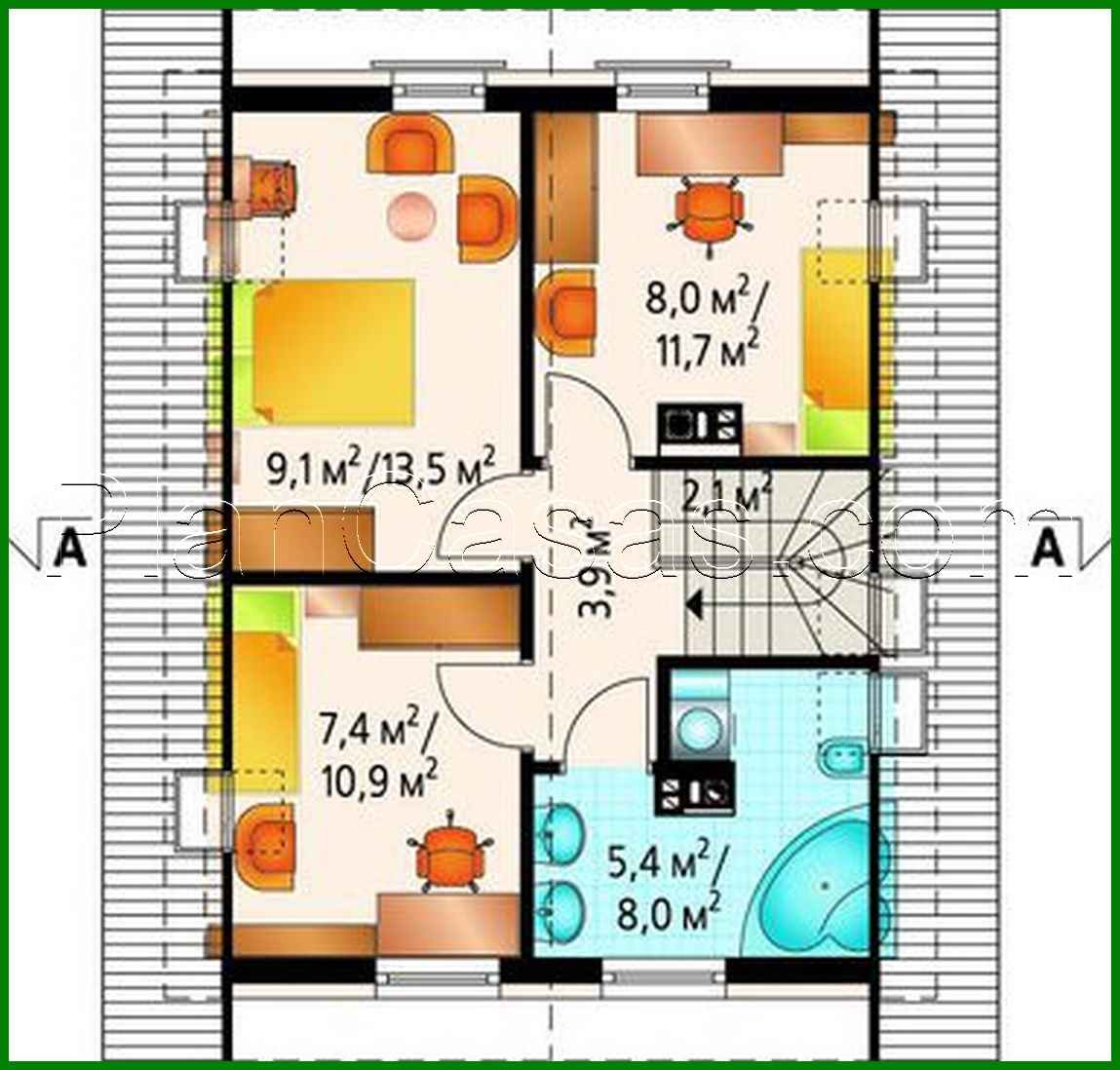

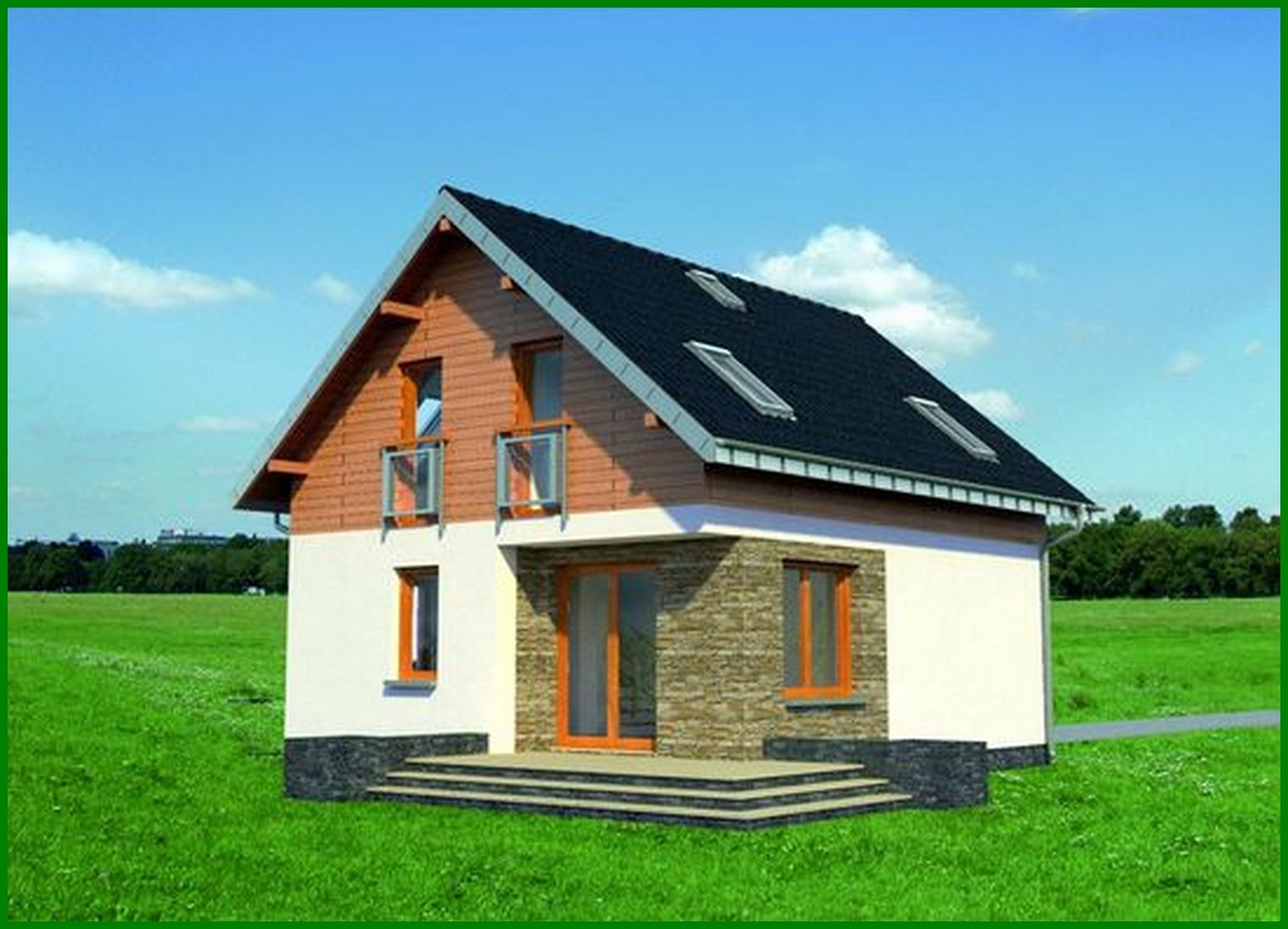

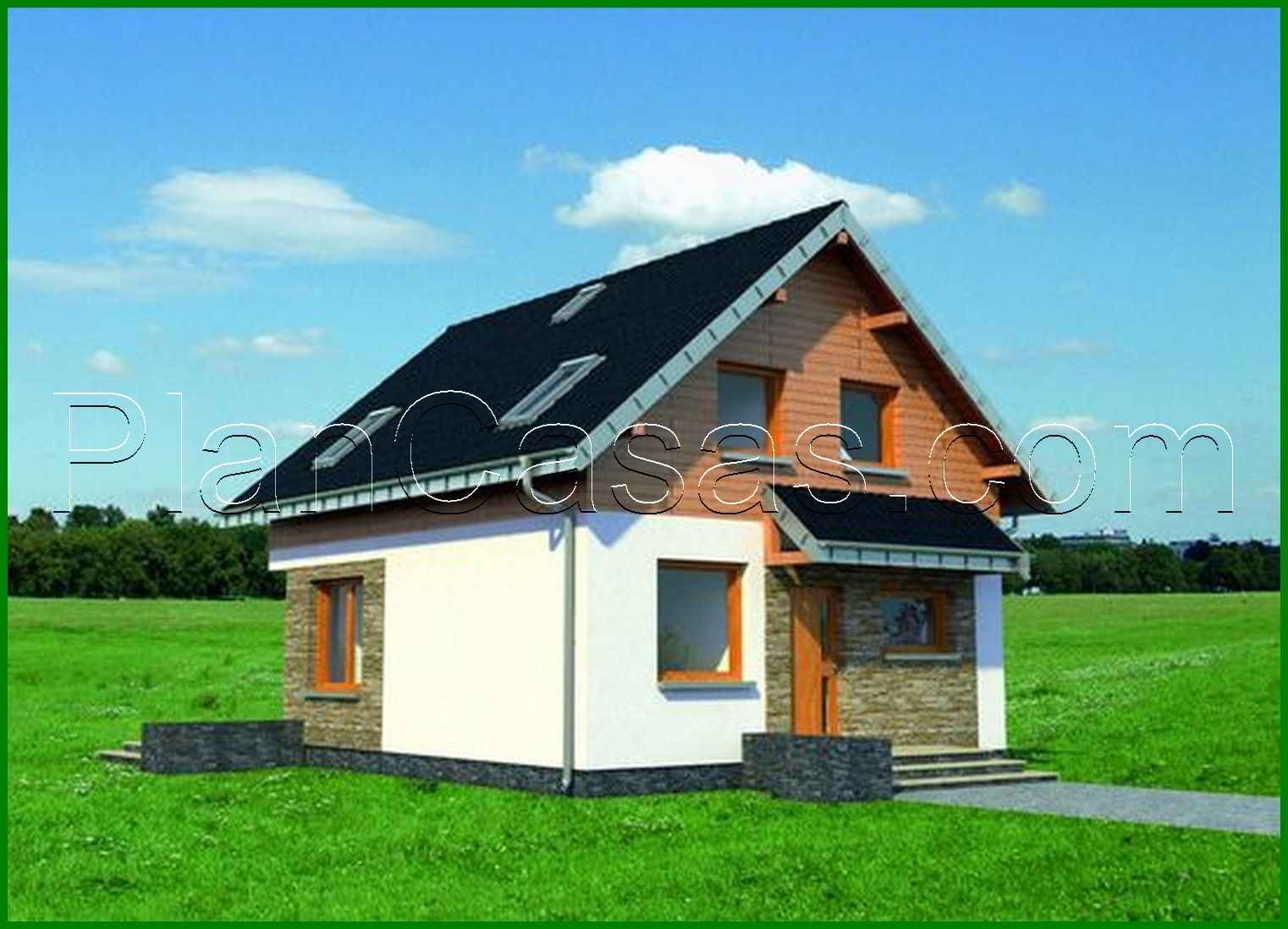

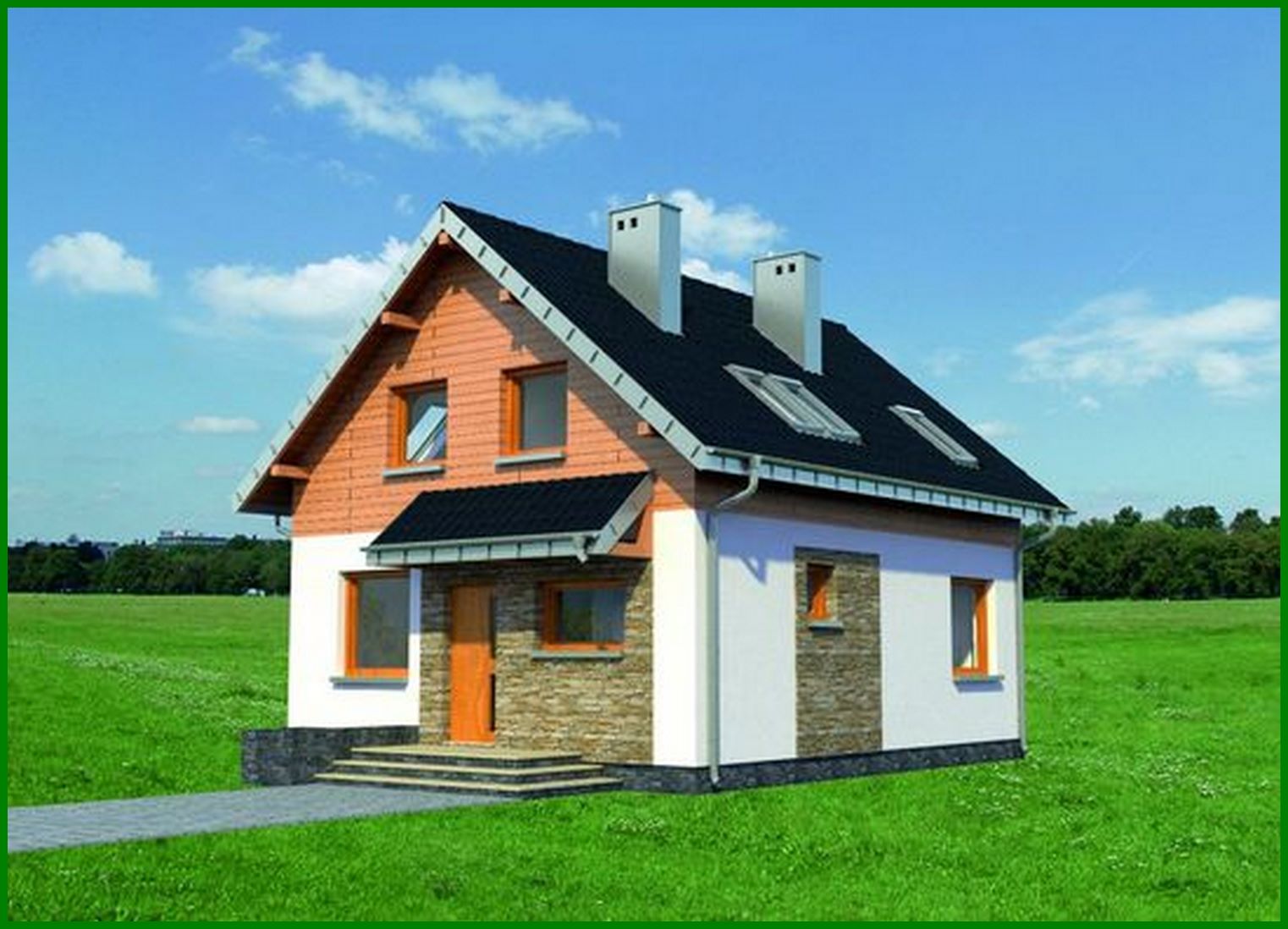

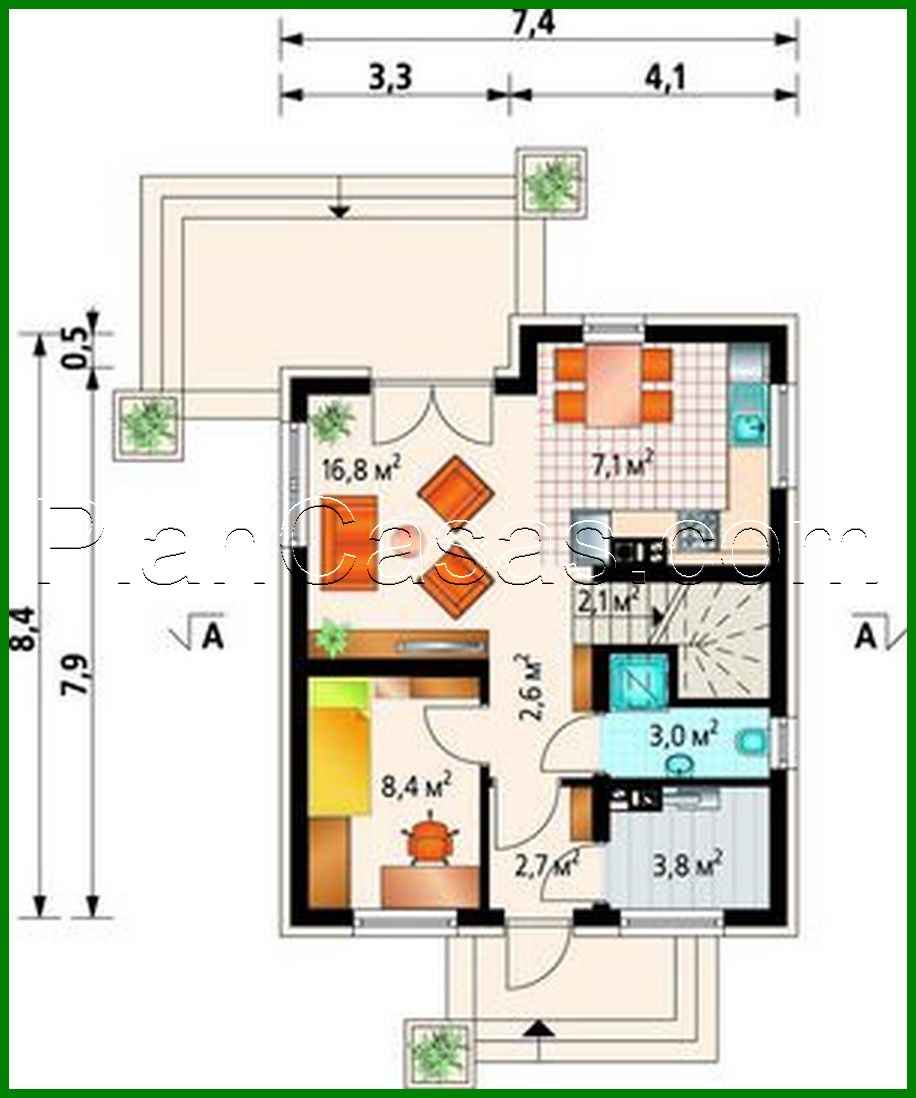

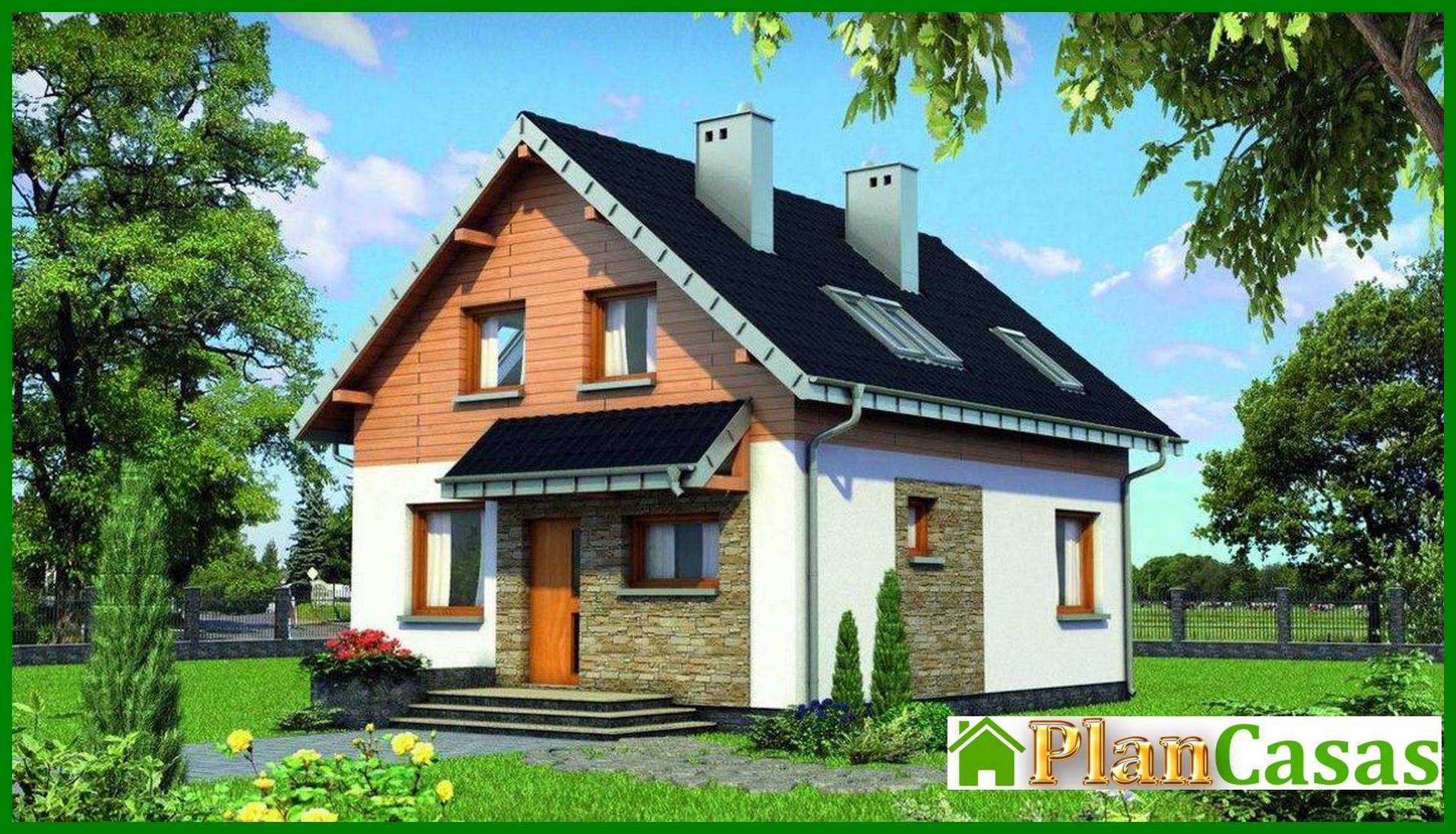

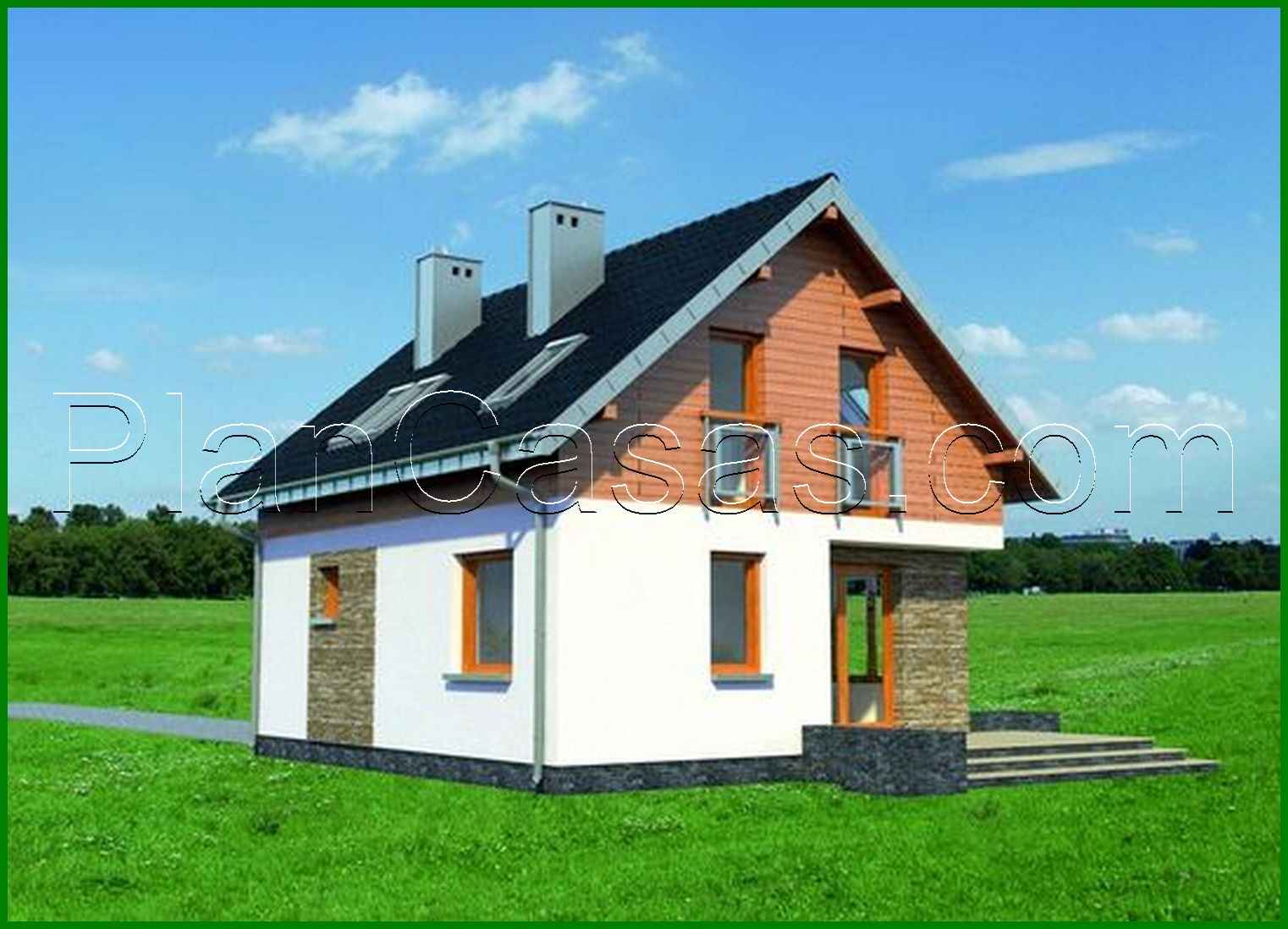

Visualization gallery
