House project with a large terrace above the garage
228 m² total area
/ 2454 ft²
2 floors
3 bedrooms
3 bathrooms
Click to view
‹
›
Description

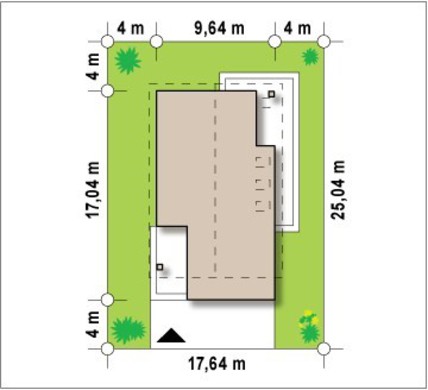

House project with a large terrace above the garage Number of floors: 2 Total area: 227.50 m2 Living Area: 161.50 m2 House height: 7.77 m Ceiling Height: 2.80 m Roof Angle: 35 ° Roof area: 205.00 m2 Cubature: 558.00 m3 Number of bedrooms: 3 Number of bathrooms: 3 Garage: Two-car garage Minimum plot size (length): 17.64 m Minimum plot size (width): 25.04 m Materials: Walls: aerated concrete, ceramic blocks Overlap: monolithic overlap Roofing: ceramic tile, metal tile, cement-sand tile Foundation: monolithic tape band
Interested in this plan?
Contact us to get full blueprints, construction estimate, or adapt this plan to your plot and needs.
Request more informationVisualization gallery
